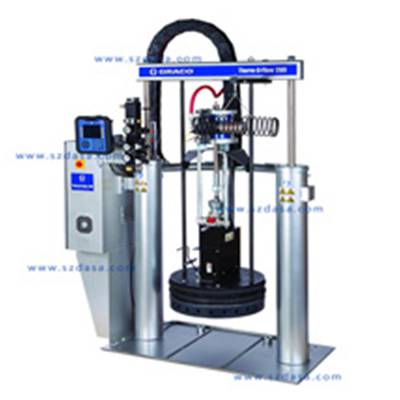

Therm-O-Flow 200
Displacement Pump Effective Area	1.24 sq in
Volume per Cycle	11.7 cu in
Pump Cycles	21/1 gal
Maximum Air Input Pressure (Ram)	125 psi
Maximum Pump Operating Temperature	400°F
Air Inlet Size	1/2 npsm(f)
Pump Fluid Outlet Size	1 in npt(f)
Wetted Parts	Carbon steel; brass; chrome, zinc, and nickel plating; 304, 316, 440, and 17-4 PH grades of stainless steel; alloy steel; ductile iron; PTFE
Weight	1200 lb
Maximum fluid working pressure
NXT 2200	2300 psi
NXT 3400	3000 psi
NXT 6500	3000 psi
Maximum air input pressure (pumps)
NXT 2200	100 psi
NXT 3400	82 psi
NXT 6500	43 psi
Air Motor Piston Effective Area
NXT 2200	28.3 sq in
NXT 3400	44.2 sq in
NXT 6500	84.5 sq in
Instruction Manuals
Heated Hoses	309160
Wiper Kits	309196
Bare Displacement Pump Lower	308570
6.5 in. (165 mm) Global Ram Module	310523
Power Requirements
Compressed Air	25-50 scfm (typical)
Voltage (as selected)	380/400 V, 3-phase, 50/60 Hz
Peak Consumption	With mega-Flo melt grid: 27.5 kVa

Therm-O-Flow 200 Hot Melt System
Displacement pump effective area	1.24 in?
Volume per cycle	11.7 in?
Pump cycles per 1 gallon (3.8 liters)	21
Ram maximum input pressure	125 psi
Maximum pump operating temperature	400°F
Air inlet size	3/4 npsm(f)
Air motor sound data	See air motor instruction manual.
Pump fluid inlet size	1 in npt(f)
Wetted Parts	carbon steel, brass, chrome, zinc, nickel plating, stainless steel (304, 316, 440, and 17–4 PH), alloy steel, ductile iron, PTFE
Maximum Fluid Working Pressure
Merkur 6.0 in	2300 psi
Merkur 7.5 in	3000 psi
NXT 6500	3000 psi
Maximum Air Input Pressure (Pumps)
Merkur 6.0 in	100 psi
Merkur 7.5 in	82 psi
NXT 6500	43 psi
Power Requirements
Compressed Air (typical)	25–50 scfm
Voltage (as selected)	220/240 V, 3-phase, 50/60 Hz
	380/400 V, 3-phase, 50/60 Hz
	470/490 V, 3-phase, 50/60 Hz
	600 V, 3-phase, 50/60 Hz
Peak Consumption(includes drum melt grid, pump, and a 6kVa transformer for the 230 V hoses and accessories)
with standard melt grid	27.1 kVa
with Mega-Flo melt grid	30.2 kVa
with smooth melt grid	27.1 kVa
